Building a Comprehensive Cybersecurity Platform for InfoSec

Working on the InfoSec project was a comprehensive experience that allowed me to take on the role of a full-stack developer, from designing the user interface to managing the backend infrastructure. InfoSec provides proactive cybersecurity solutions to protect businesses from cyber threats, with a focus on providing comprehensive services supported by advanced technologies.

The InfoSec platform needed to be robust, secure, and user-friendly. The project required integrating multiple technologies and ensuring high performance and scalability. My responsibilities included designing and developing the frontend with React and Material-UI, implementing backend services with Node.js, Express.js, and MongoDB, and managing the overall project structure.

During the development of the InfoSec platform, I utilized a range of modern technologies and tools to ensure the project met the highest standards of security and user experience.

React and Material-UI

React was chosen for its component-based architecture, which allows for efficient development and maintenance of the user interface. Material-UI was used to ensure a consistent and professional look and feel.

Example: Advanced React Component with Material-UI

import React, { useState, useEffect } from 'react';
import { Button, Snackbar } from '@mui/material';
import Alert from '@mui/material/Alert';

const NotificationButton = () => {
  const [open, setOpen] = useState(false);
  const [message, setMessage] = useState('');

  useEffect(() => {
    // Simulate fetching notification
    const timer = setTimeout(() => {
      setMessage('You have a new security alert!');
      setOpen(true);
    }, 3000);
    return () => clearTimeout(timer);
  }, []);

  const handleClose = (event, reason) => {
    if (reason === 'clickaway') {
      return;
    }
    setOpen(false);
  };

  return (
    <>
      <Button variant="contained" color="primary" onClick={() => setOpen(true)}>
        Show Notification
      </Button>
      <Snackbar open={open} autoHideDuration={6000} onClose={handleClose}>
        <Alert onClose={handleClose} severity="warning">
          {message}
        </Alert>
      </Snackbar>
    </>
  );
};

export default NotificationButton;

For the backend, Node.js and Express.js were used to create a scalable and efficient server environment. MongoDB was chosen for its flexibility and ability to handle large volumes of unstructured data. This stack allowed for the implementation of RESTful APIs and real-time data processing.

Example: Secure Express.js Server with Authentication

const express = require('express');
const mongoose = require('mongoose');
const bcrypt = require('bcrypt');
const jwt = require('jsonwebtoken');
const cors = require('cors');
const User = require('./models/User'); // Assuming User model is defined in models/User

const app = express();
const PORT = process.env.PORT || 3000;

mongoose.connect('mongodb://localhost:27017/infosec', { useNewUrlParser: true, useUnifiedTopology: true });

app.use(cors());
app.use(express.json());

app.post('/register', async (req, res) => {
  const { username, password } = req.body;
  const hashedPassword = await bcrypt.hash(password, 10);
  const user = new User({ username, password: hashedPassword });
  await user.save();
  res.status(201).send('User registered');
});

app.post('/login', async (req, res) => {
  const { username, password } = req.body;
  const user = await User.findOne({ username });
  if (!user || !await bcrypt.compare(password, user.password)) {
    return res.status(401).send('Invalid credentials');
  }
  const token = jwt.sign({ id: user._id }, 'your_jwt_secret', { expiresIn: '1h' });
  res.json({ token });
});

app.listen(PORT, () => {
  console.log(`Server running on port ${PORT}`);
});

SCSS was used for styling to take advantage of its variables, nesting, and mixins, which streamline the CSS development process

Example: Advanced SCSS Structure

$primary-color: #3498db;
$secondary-color: #2ecc71;

@mixin transition(\$property, \$duration) {
  transition: \$property \$duration ease-in-out;
}

body {
  font-family: Arial, sans-serif;
  color: \$primary-color;
  background-color: lighten(\$primary-color, 40%);
}

.button {
  background-color: darken(\$primary-color, 10%);
  border: none;
  color: white;
  padding: 10px 20px;
  @include transition(all, 0.3s);
  &:hover {
    background-color: lighten(\$primary-color, 10%);
  }
}

The development process involved several stages, from initial planning and design to implementation and testing. Ensuring the platform's security and performance was paramount due to the nature of cybersecurity services.

Agile Methodology

We adopted an Agile methodology with regular sprints and iterations. This approach allowed us to continuously improve the platform based on user feedback and changing requirements.

User Experience (UX) Design

A significant focus was placed on UX design to ensure that the platform was intuitive and easy to use. This involved creating wireframes, prototypes, and conducting user testing to gather insights and make necessary adjustments.

Example: UX Design Process

import React from 'react';
import { Typography, Grid, Paper } from '@mui/material';

const UXDesignExample = () => (
  <Grid container spacing={3}>
    <Grid item xs={12}>
      <Typography variant="h4" gutterBottom>
        UX Design Process
      </Typography>
    </Grid>
    <Grid item xs={12} md={6}>
      <Paper elevation={3} style={{ padding: '20px' }}>
        <Typography variant="h6">Wireframing</Typography>
        <Typography variant="body1">
          Creating initial sketches and wireframes to visualize the layout and structure of the platform.
        </Typography>
      </Paper>
    </Grid>
    <Grid item xs={12} md={6}>
      <Paper elevation={3} style={{ padding: '20px' }}>
        <Typography variant="h6">Prototyping</Typography>
        <Typography variant="body1">
          Developing interactive prototypes to test functionality and gather user feedback.
        </Typography>
      </Paper>
    </Grid>
  </Grid>
);

export default UXDesignExample;

Several key features were implemented to enhance the functionality and user experience of the InfoSec platform.

Automated Incident Reporting

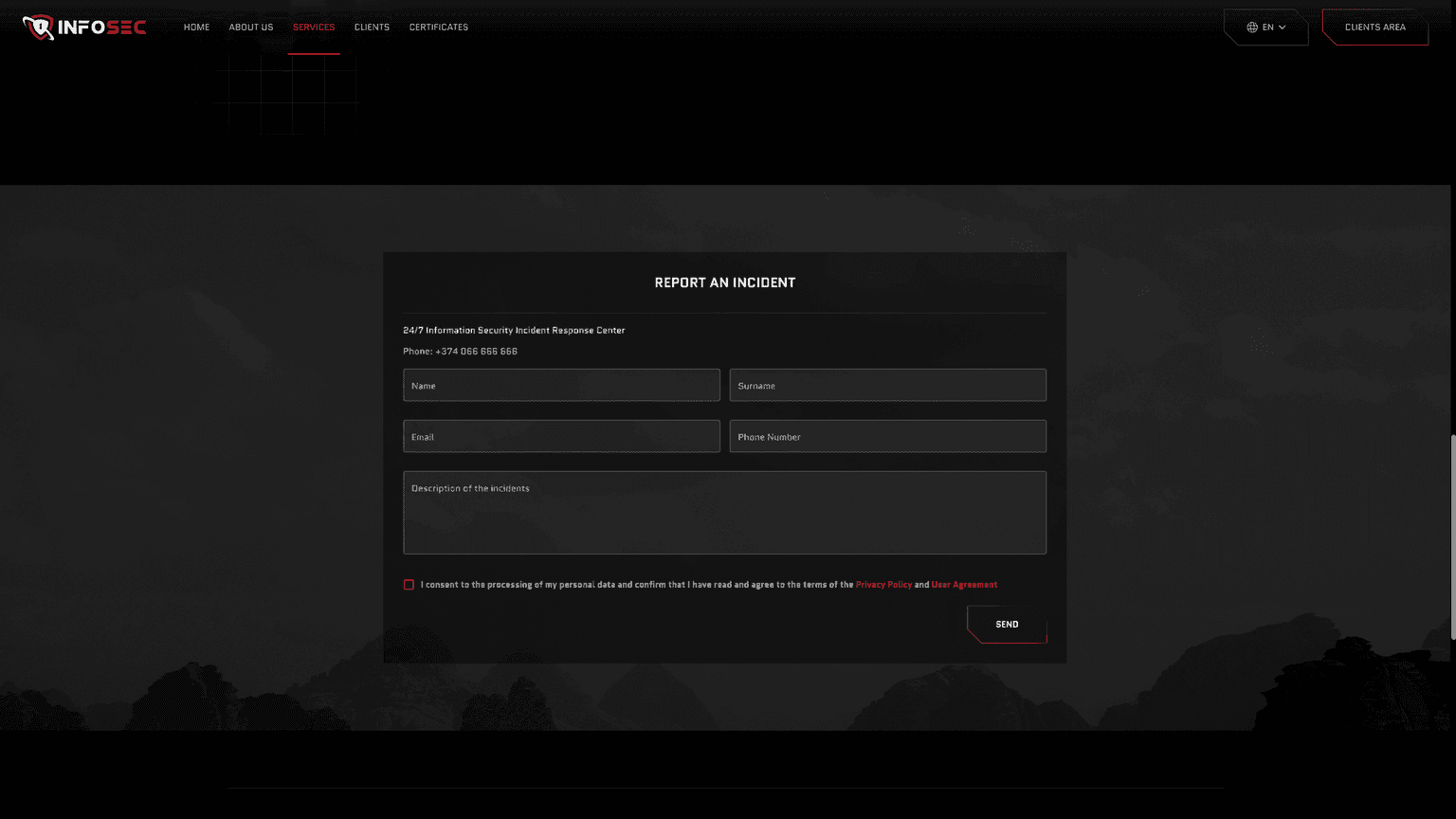

We developed an automated incident reporting system that allows users to report cybersecurity incidents directly through the platform. This feature required integrating real-time data processing and notification systems.

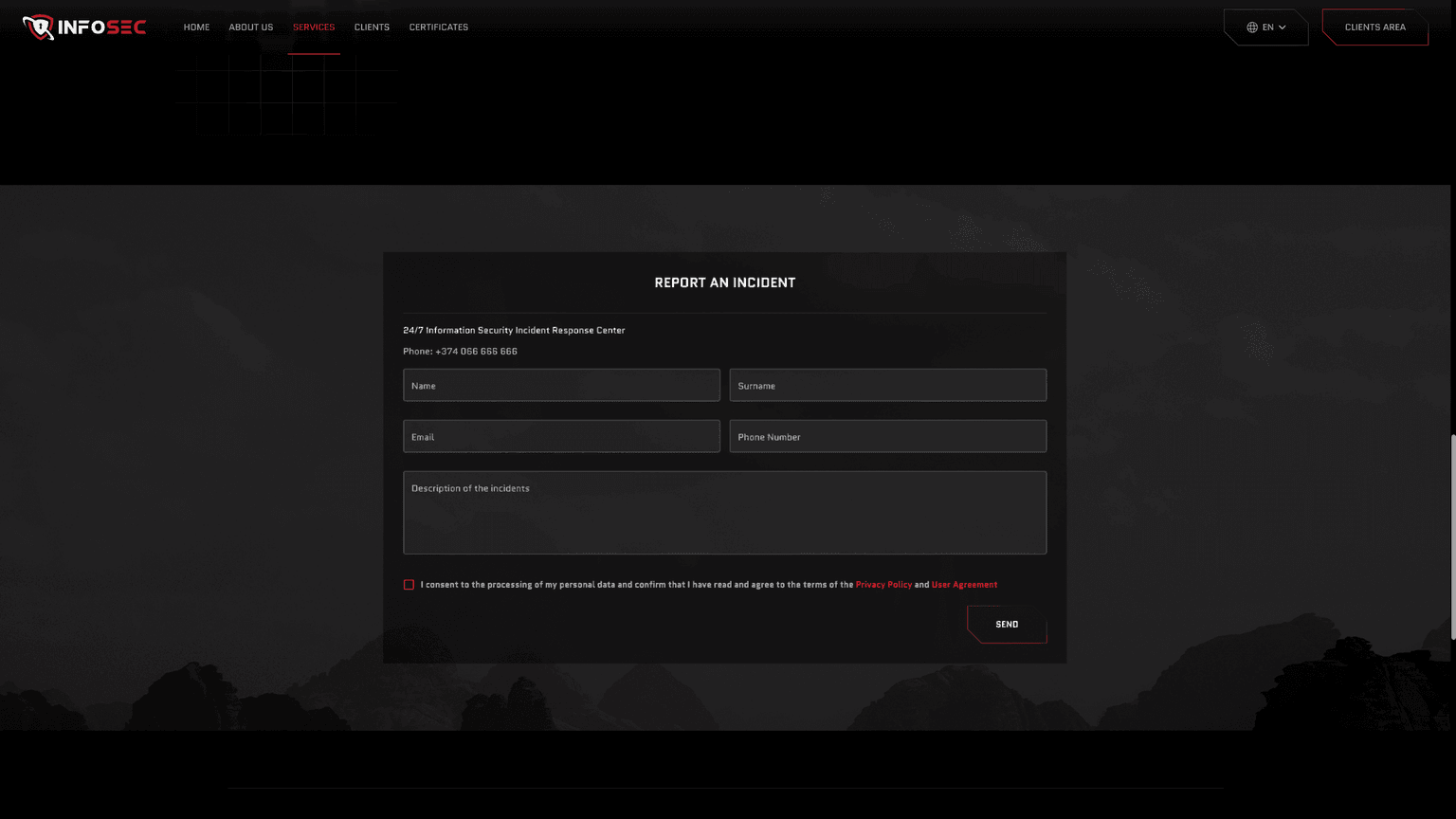

Real-Time Notifications

Real-time notifications were implemented to keep users informed about security alerts and updates. This was achieved using WebSocket and push notification technologies.

Example: WebSocket Implementation

const socket = new WebSocket('wss://infosec.co/notifications');

socket.onmessage = (event) => {
  const message = JSON.parse(event.data);
  console.log('New notification:', message);
};

Responsive Design

Ensuring that the platform was fully responsive was crucial. We utilized CSS frameworks and media queries to make sure the platform worked seamlessly across various devices and screen sizes.

Example: Advanced Responsive Design

.incident-report {
  padding: 20px;
  display: flex;
  flex-direction: column;
}

@media (max-width: 768px) {
  .incident-report {
    padding: 10px;
    flex-direction: column;
  }
}

@media (min-width: 769px) and (max-width: 1024px) {
  .incident-report {
    padding: 15px;
    flex-direction: row;
    justify-content: space-between;
  }
}

CSS Organization Methodologies

To maintain a scalable and maintainable codebase, we adopted CSS organization methodologies such as BEM, OOCSS, and SMACSS.

Example: BEM Methodology

// BEM naming convention
.button {
  &__icon {
    margin-right: 10px;
  }
  &--primary {
    background-color: $primary-color;
    color: white;
  }
}

Working on the InfoSec project was a highly rewarding experience. It allowed me to apply and expand my knowledge in modern web development technologies and best practices. The collaborative environment and the focus on user-centered design provided valuable insights into building scalable and user-friendly platforms.

In conclusion, my time at InfoSec was marked by significant professional growth and the satisfaction of contributing to a platform that makes a real difference in the cybersecurity industry. The skills and experiences gained will undoubtedly be beneficial in my future projects.
